ULSTRIPE Dmx addressable Pixel Led Controller

ULS Manufacturing

The worlds most advanced DMX Led Pixel controller, with Everything in one box! power supply, several rigging option , supports 12v and 5v . 7 dmx modes from 1 channel to full pixel mapping mode!

• Dmx in led pixel tape and string out

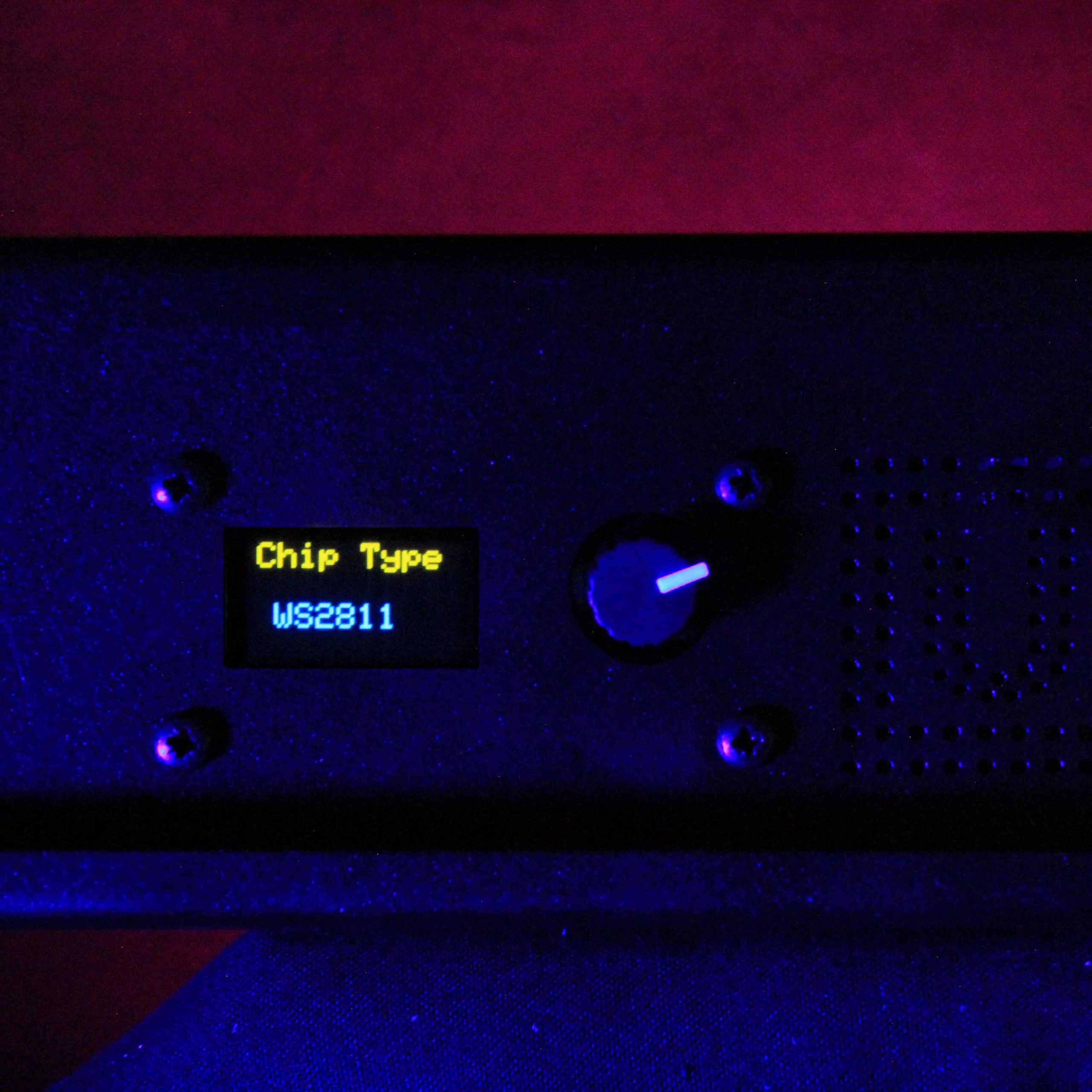

• Supports a wide range of digital led pixel tapes ws2811, ws 2812, ws 2812 APA102
• 5V and 12v output

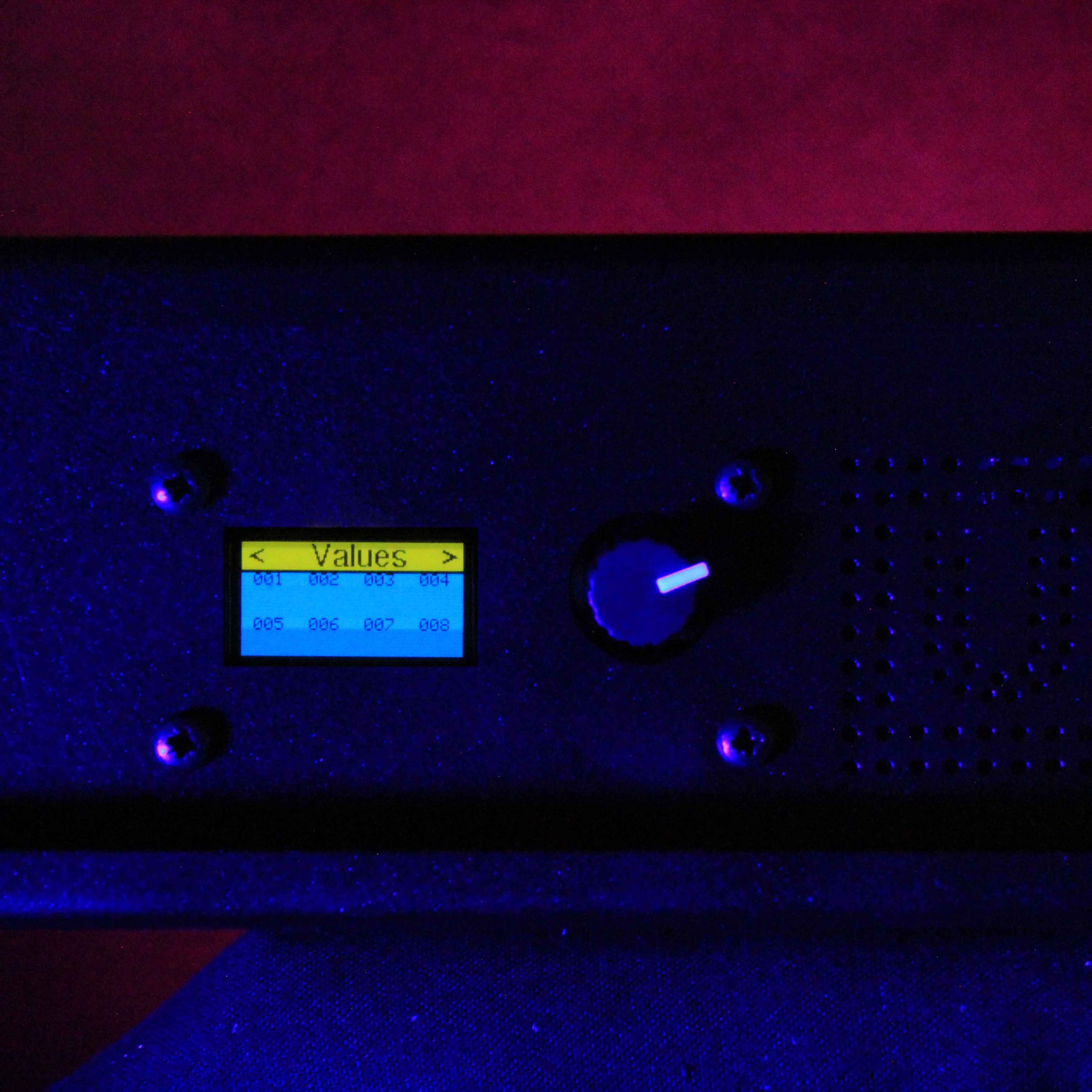

• Onboard colour display with encoder and advance menu options
• Test mode, red, green blue and individual leds
• brightness setting

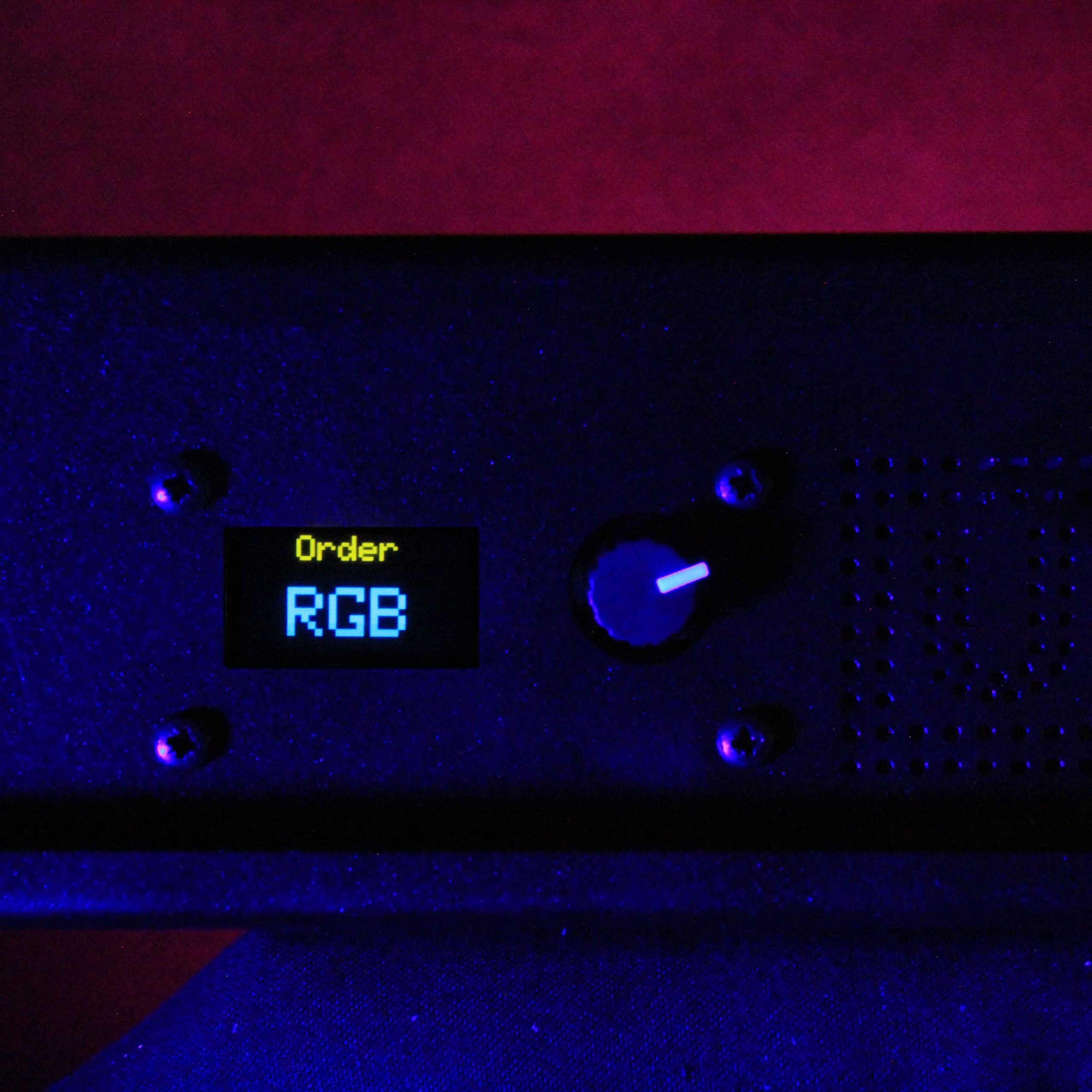

• Colour order RGB, RBG, GRB, GBR, BRG, BGR
• colour correction setting
• Powerconn in and outs
• 5pin and 3pin xlr in and out
• 4 x  5 pin industrial output to leds. each with 5v, 12v, data, clock and Ground
• unit will support in at between 1 to 1000 leds depending on size
• 12v 18amps 216 watts
• 5v 14amp 70 watts

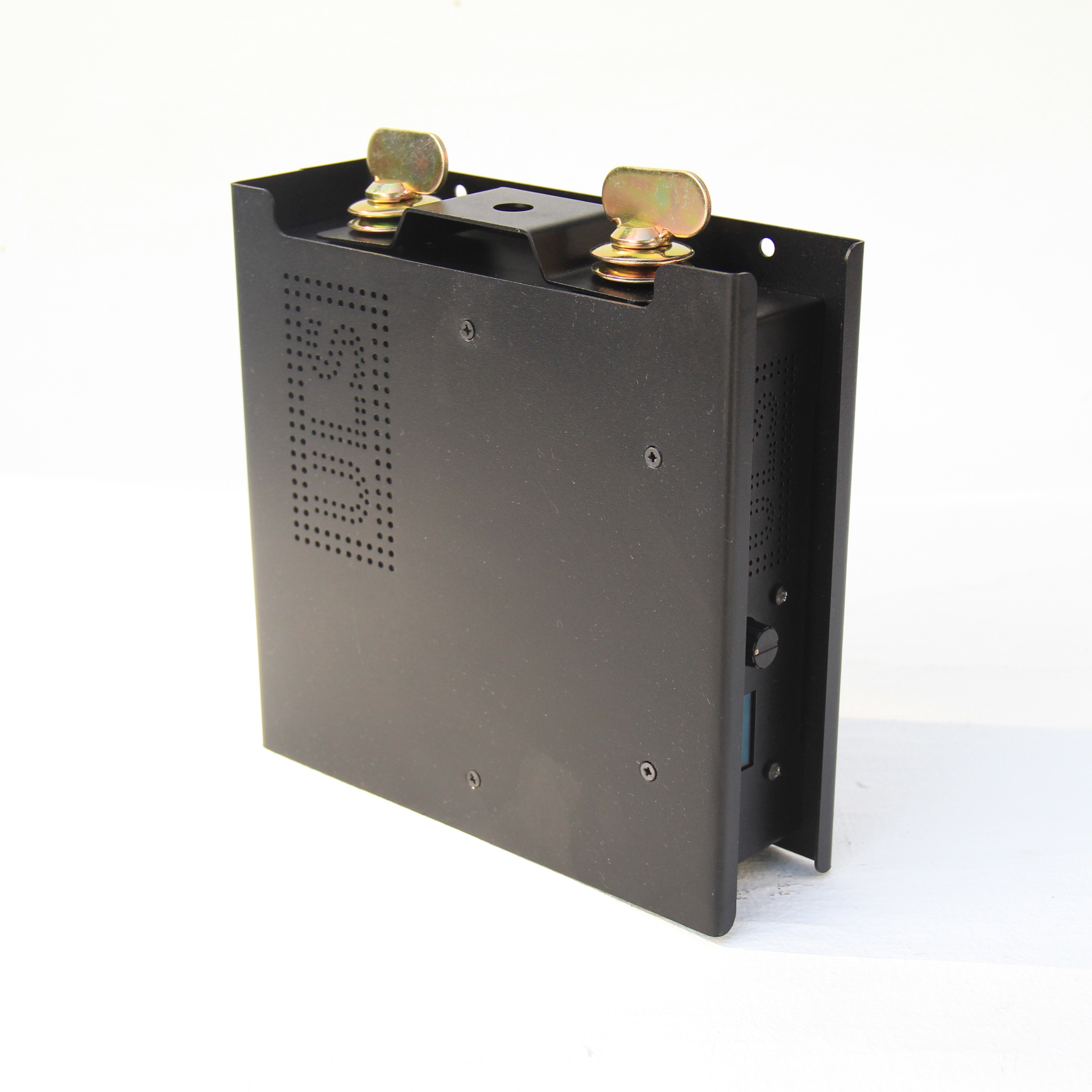

• Rigging clamp supplied with 1/4 turn quick release.
• mounting holes for fixing to timber, flats etc.

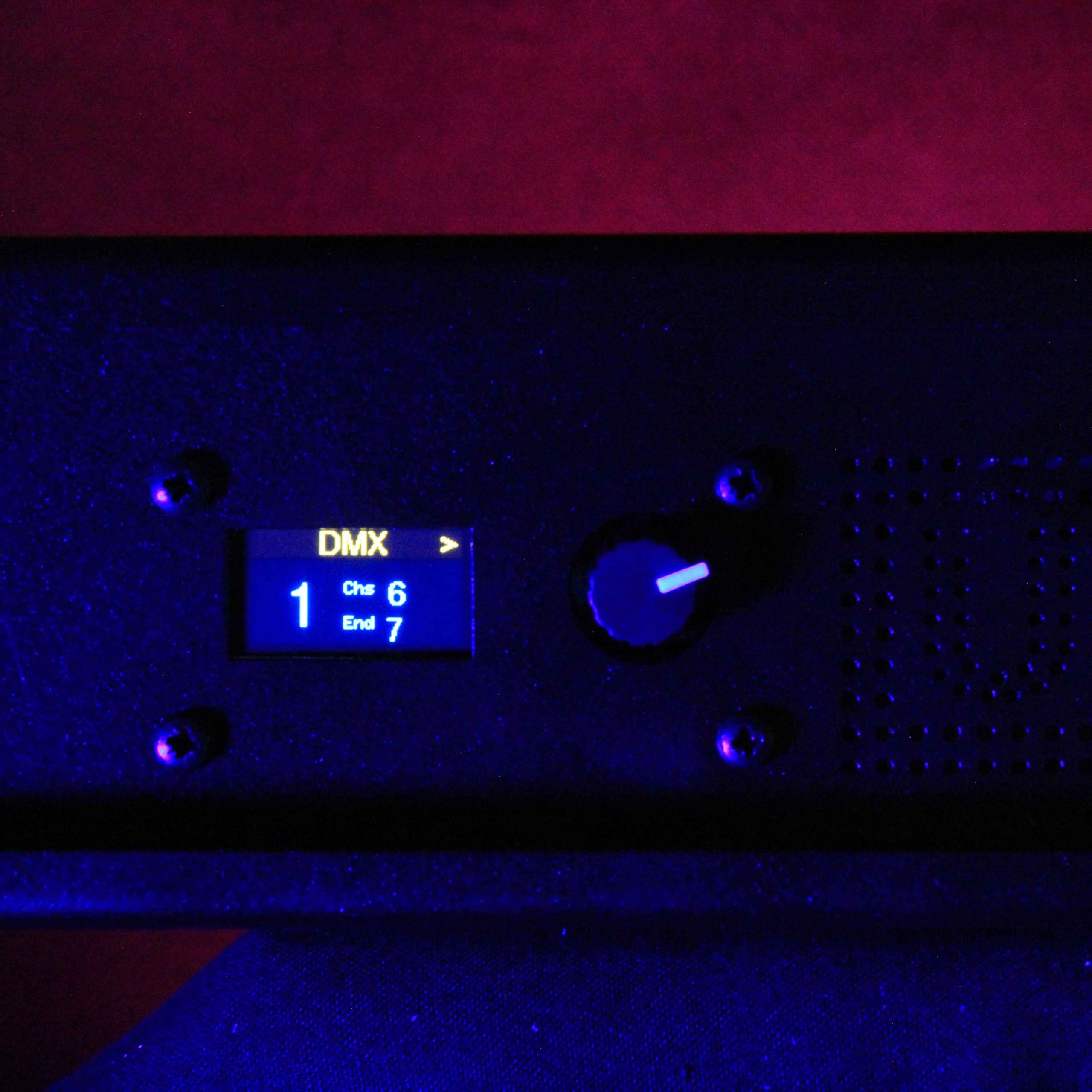

Dmx Modes

Mode A , 1 dmx channel = all leds white

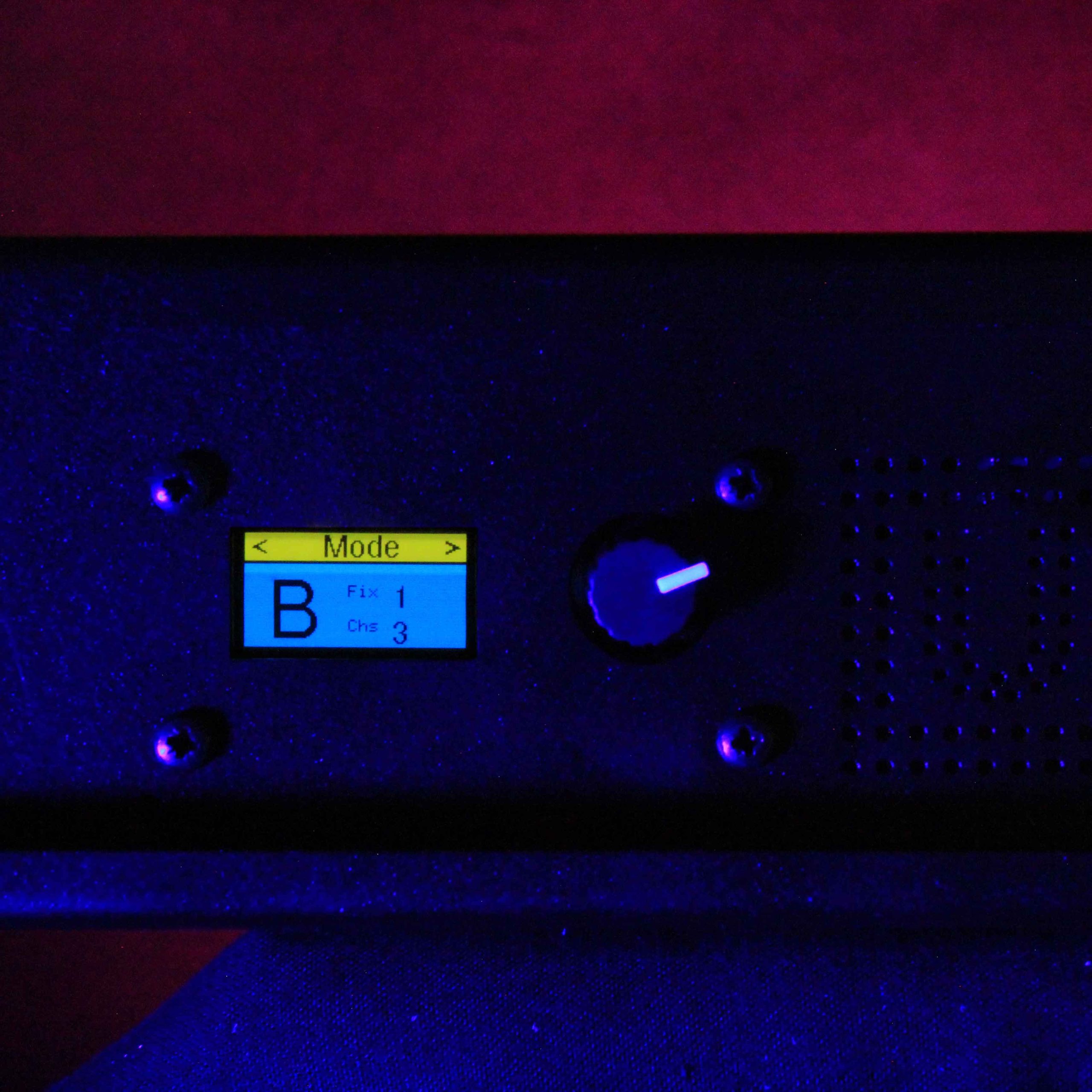

Mode B , 3 DMX channels = all leds Red, Green, Blue

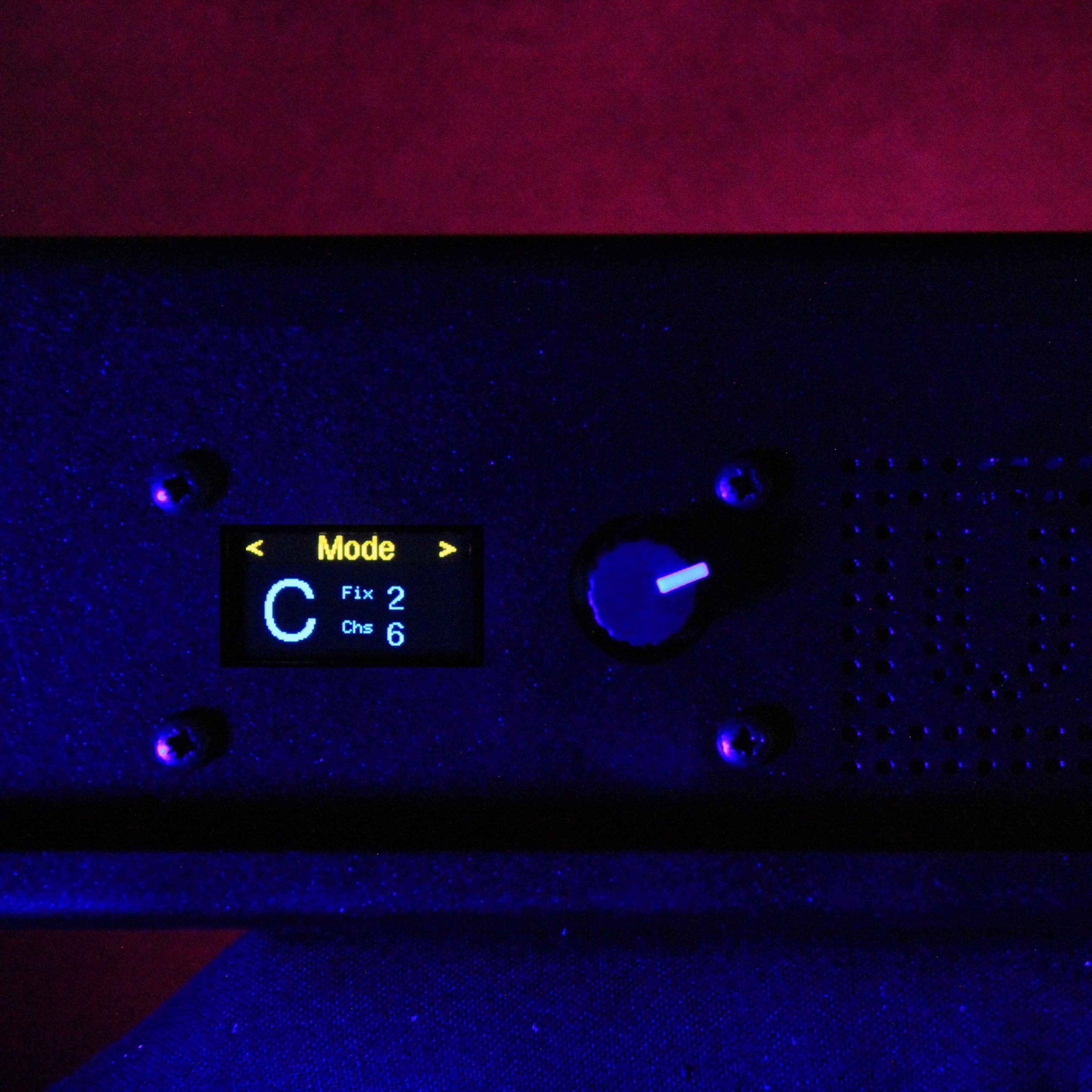

Mode C , 6 DMX channels = every other  led Red, Green, Blue.

Mode D , 9 DMX channels = every 3rd led,  Red, Green, Blue.

Mode E , 150 DMX channels = groups of 3 leds,  Red, Green, Blue.

Mode F , 100 DMX channels = groups of 4 leds,  Red, Green, Blue.

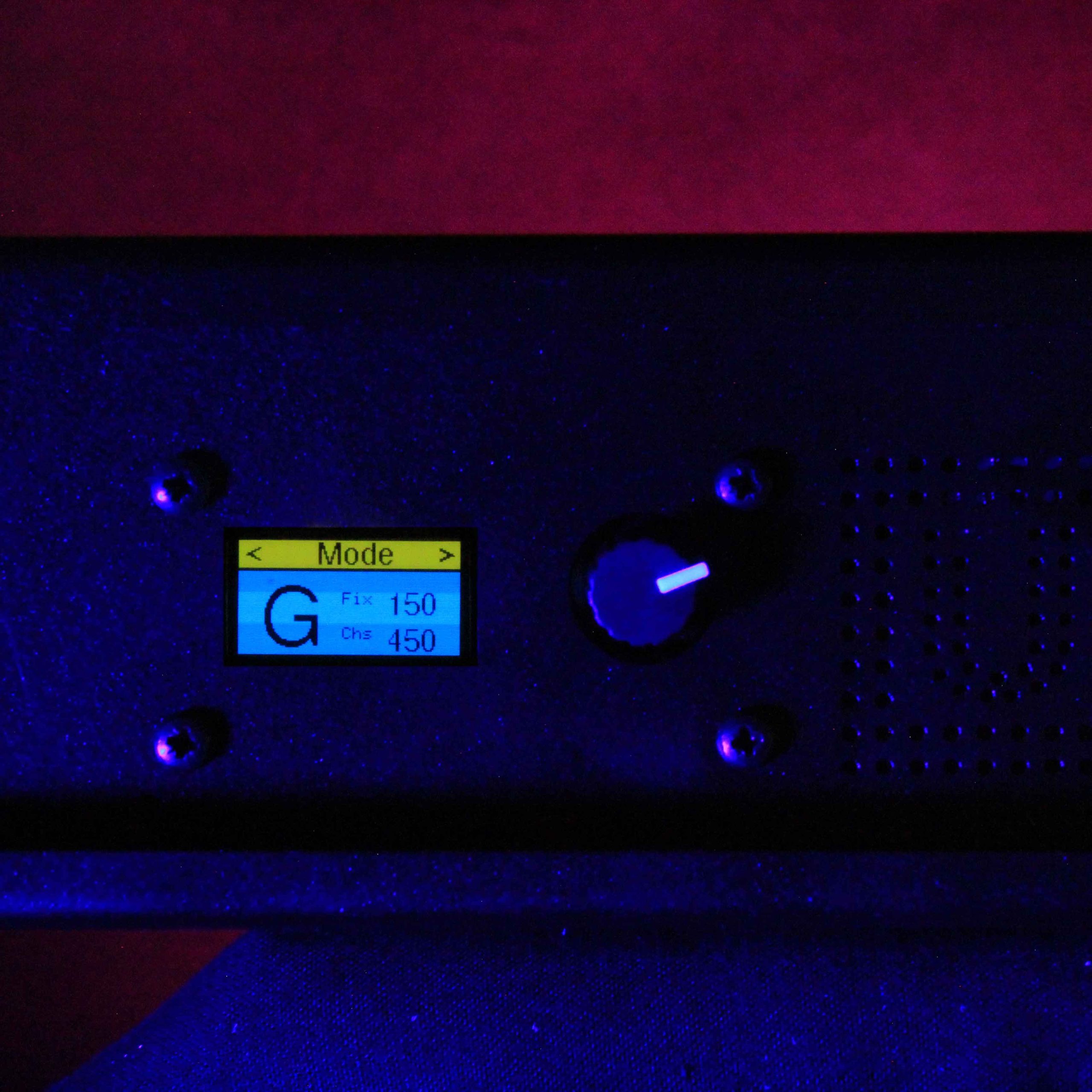

Mode G , 450 DMX channels = individual control,  Red, Green, Blue.
